Wine Tray Making Machine | 1000–7000 Pcs/h Wine Packaging Production Line
4.7(79)
The pulp wine tray making machine produces eco-friendly molded pulp packaging for wine bottles with high efficiency and customizable molds, supporting sustainable and cost-effective packaging solutions.
Amid the global trend toward rapid adoption of eco-friendly packaging, the pulp wine tray making machine has gradually emerged as a vital piece of production equipment in the wine packaging industry. This machine uses recycled paper—such as waste cardboard boxes and newspapers—as raw material.
Through processes including pulping, molding, drying, and packaging, it produces eco-friendly pulp-molded wine trays for glass bottles used in wine, champagne, and spirits. The equipment has a production capacity ranging from 1,000 to 7,000 pieces per hour, with a power range of approximately 38–120 kW.
It can accommodate production needs of various scales, making it suitable for everything from small and medium-sized wineries to large-scale industrial packaging plants. Compared to traditional foam and plastic packaging, pulp wine trays offer advantages such as biodegradability, environmental safety, and excellent cushioning performance.

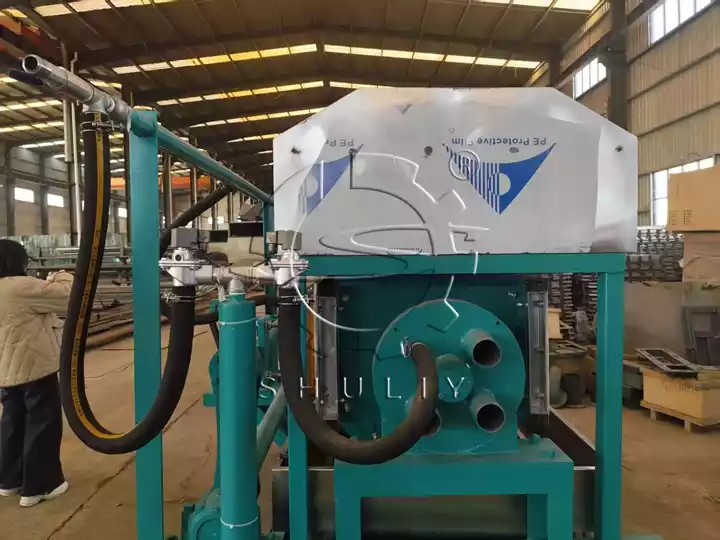

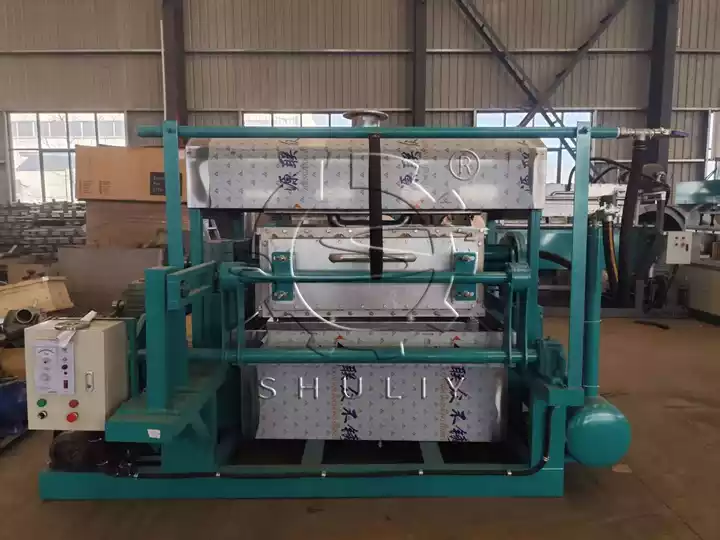

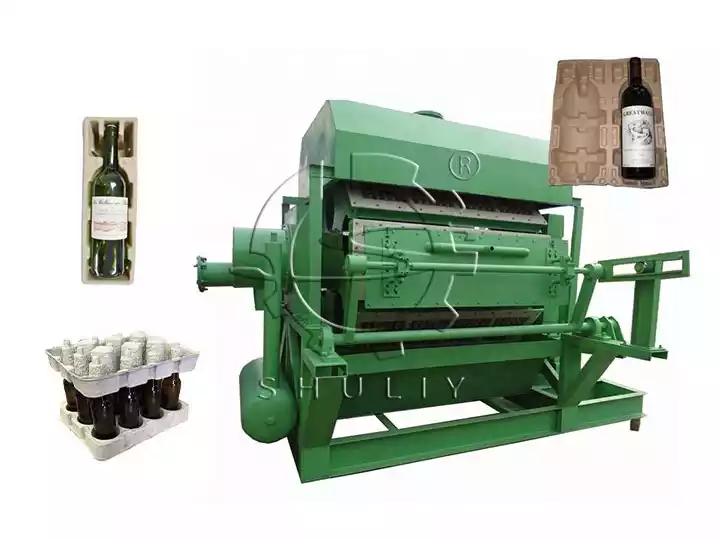

wine packaging tray making machinewine bottle protection tray machine
Additionally, the wine tray making machine supports the production of custom molds for various bottle configurations (such as 1-bottle, 2-bottle, 6-bottle, and 12-bottle sets) and different bottle sizes (750ml, 1L, 1.5L, etc.), allowing for flexible adaptation to diverse packaging needs. As a result, its application in the global green packaging market is growing increasingly widespread.
Types of wine dispensers and industry applications
Wine dispensers come in a variety of designs to meet different packaging and industry needs:
Single-bottle/double-bottle wine dispensers: used for high-end wine and gift box packaging.
6-bottle/12-bottle wine dispensers: suitable for e-commerce shipping, wholesale, and export transportation.
Display-type wine dispensers: used for supermarket displays and brand promotion.
Widely used in the following industries:
Wine and spirits manufacturers
Alcohol export and trading companies
E-commerce logistics and warehousing industries
Gift packaging and design companies
Eco-friendly packaging manufacturers
Combining both protective and eco-friendly features, these products are suitable for a wide range of packaging needs.

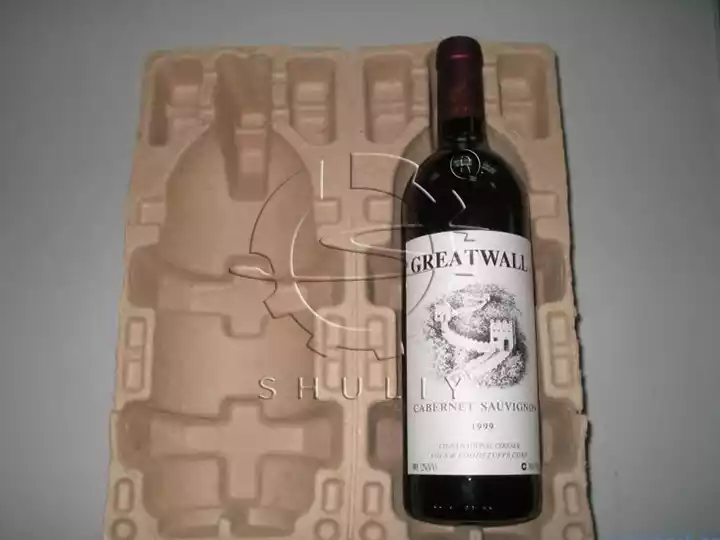

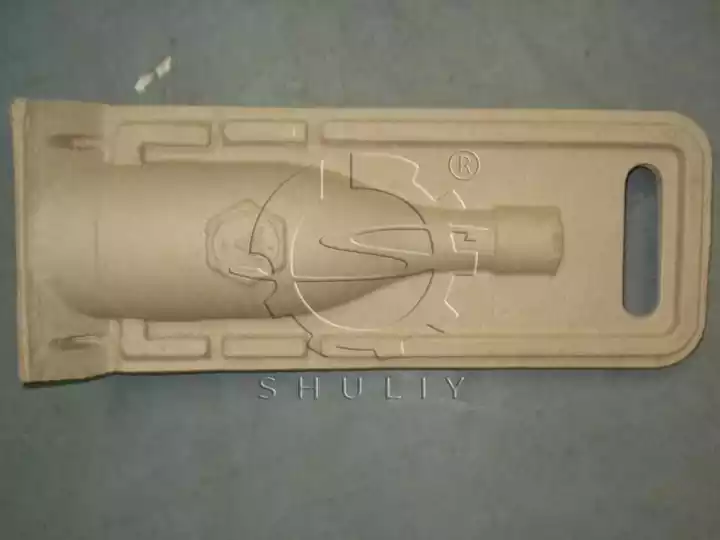

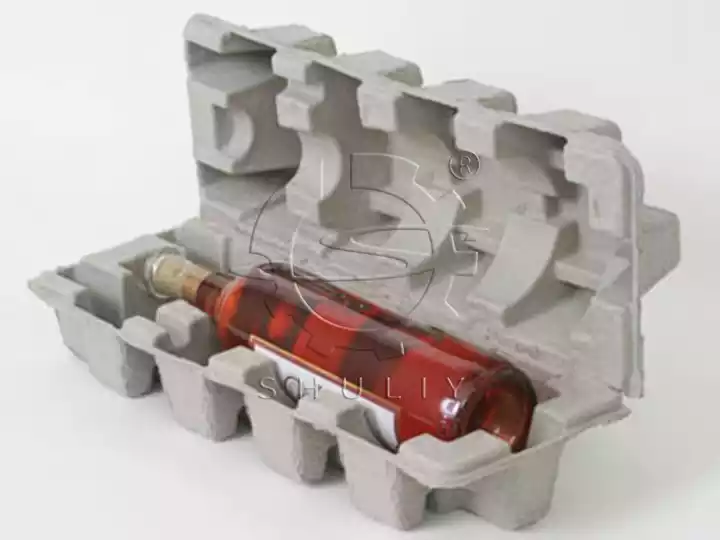

paper pulp wine traywine bottle packaging traywine bottle protection tray
Machine structure and operating principles
The wine tray making machine processing line consists of four core systems that work together to ensure efficient and stable production:
Pulp preparation system: waste paper is mixed with water and pulped to form a uniform pulp.
Forming system: a vacuum suction process shapes the pulp into the structure of a wine coaster.
Drying system: high-temperature hot air or multi-layer drying rapidly sets the shape.
Packaging system: automatic stacking, counting, and bundling improve shipping efficiency.
The equipment utilizes a proven pulp molding process, with a clear and efficient overall workflow:
Pulp Preparation → Molding → Drying → Stacking and Packaging
Under vacuum suction, the pulp adheres to the mold surface to form a structure specifically designed for wine bottles. After drying and setting, the product possesses excellent strength and compression resistance, effectively protecting glass bottles during transportation.

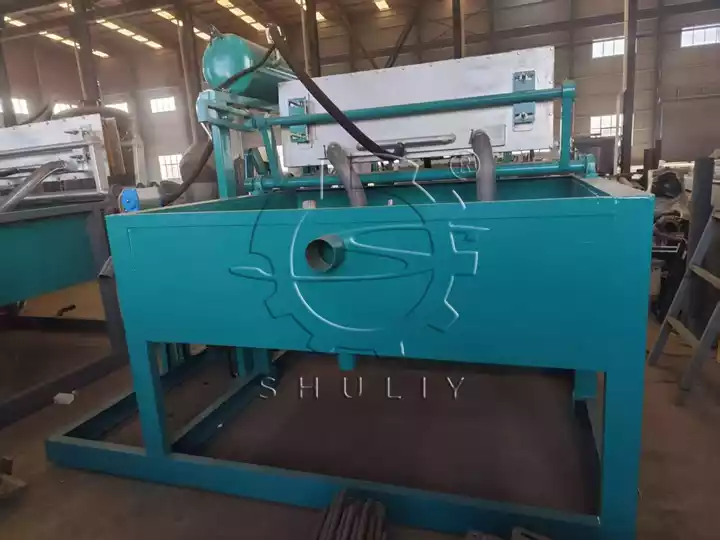

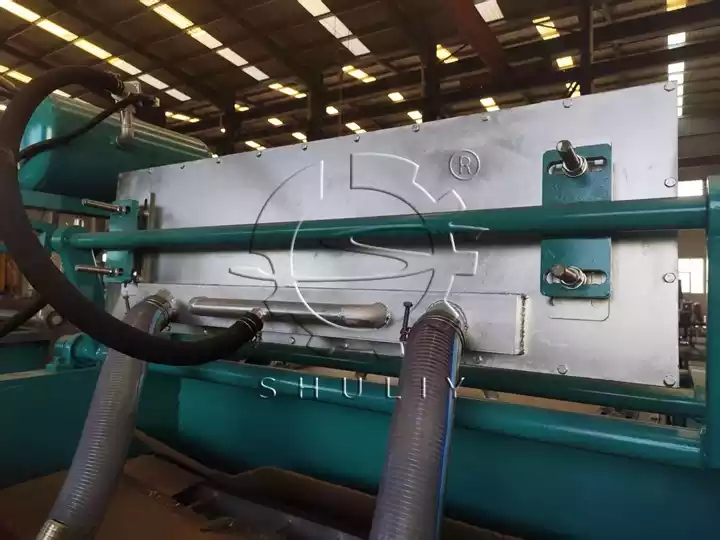

eco friendly wine bottle tray machinewine tray making machine mold
Specifications of the wine tray making machine
Model
Capacity
Power
Voltage
Weight
Pulp Usage
Water Usage
Size (mm)
SL-1000-3X1
1000pcs/h
38kw
380V,50HZ
2500kg
80kg/h
160kg/h
2600*2200*1900
SL-1500-4X1
1500pcs/h
38kw
380V,50HZ
3000kg
120kg/h
240kg/h
2800*2200*1900
SL-2500-3X4
2500pcs/h
55kw
380V,50HZ
4000kg
200kg/h
400kg/h
2900*1800*1800
SL-3000-4X4
3000pcs/h
60kw
380V,50HZ
4800kg
240kg/h
480kg/h
3250*1800*1800
SL-4000-4X8
4000pcs/h
95kw
380V,50HZ
7000kg
320kg/h
640kg/h
3250*2300*2500
SL-5000-5X8
5000pcs/h
95kw
380V,50HZ
8000kg
400kg/h
800kg/h
3700*2300*2500
SL-7000-6X8
7000pcs/h
120kw
380V,50HZ
10000kg
480kg/h
960kg/h
3200*2300*2500
Technical parameters of the automatic wine tray making machine
Wine bottle tray molding machine advantages
Fully automated, high-efficiency production: the entire process, from pulp production to packaging, is fully automated, significantly reducing labor costs and improving production efficiency.
Eco-friendly, sustainable materials: made from recycled waste paper, with zero pollution emissions, in compliance with global green packaging and environmental policies.
Highly customizable mold system: molds can be customized to fit different bottle sizes and shapes, ensuring a precise fit and stable support.
Superior cushioning and protection: the pulp structure offers excellent compression resistance and shock absorption, effectively reducing breakage rates during transportation.
Flexible production of multiple sizes: capable of producing single-bottle, double-bottle, six-bottle, and twelve-bottle wine carrier configurations to meet diverse application needs.

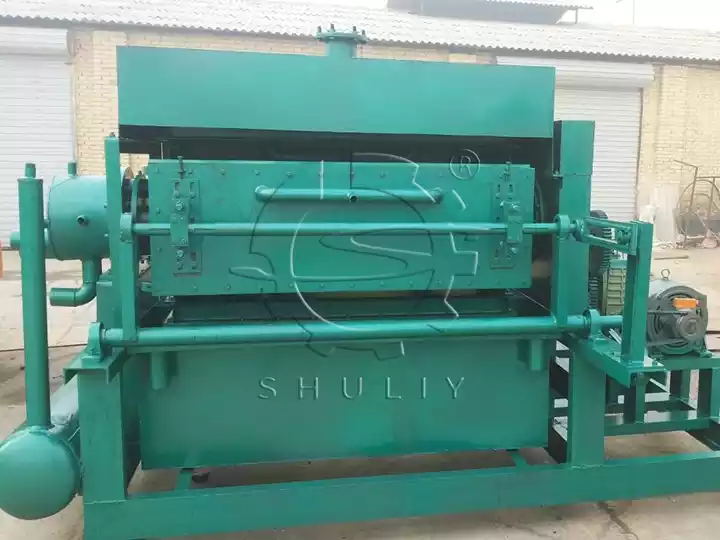

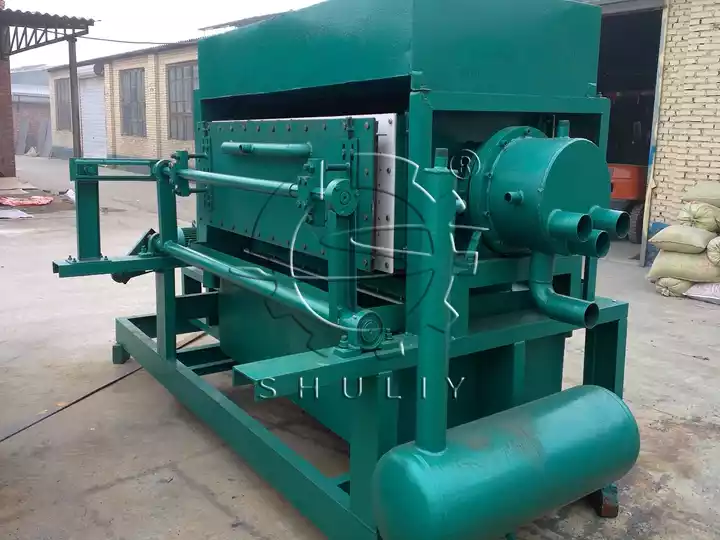

wine tray making machinemolded pulp wine bottle tray machine
Contact us
If you are planning a wine tray production project or looking to upgrade your existing packaging solutions, please contact us immediately for a customized solution and quote. We not only provide proven and reliable wine tray making machine production lines but also offer turnkey plant planning, custom mold design, and technical support tailored to your needs.
Additionally, leveraging the multi-purpose capabilities of pulp molding technology, you can expand into other product areas, such as:
Simply by changing the molds, you can produce a variety of products, significantly increasing equipment utilization and return on investment. Contact us today to start planning your eco-friendly packaging production line!
